Setup the Object Store

InfiniStream uses Object Storage as primary storage for your BYOC deployment. We recommend a dedicated bucket per region. InfiniStream will still only write under infinistream prefix.

Note

You should use a VPC Endpoint↗ (or the equivalent for your Cloud Service Provider) to ensure the network traffic between the InfiniStream Agent and your Object Storage bucket does not incur any data transfer cost, such as the cost incurred by using a NAT Gateway.

Caution

The InfiniStream Agent manages all data in the object storage warpstream directory. It is extremely important that you allow it to do so alone and never delete files from the infinistream directory manually. Manually deleting files in the infinistream directory will lead to undocumented results which may result in you creating a new group.

Object Storage URL Construction

The INFINISTREAM_BUCKET_NAME environment variable is the URL of the object storage bucket that the InfiniStream Agent should write to. See the table below for how to configure it for different object store implementations.

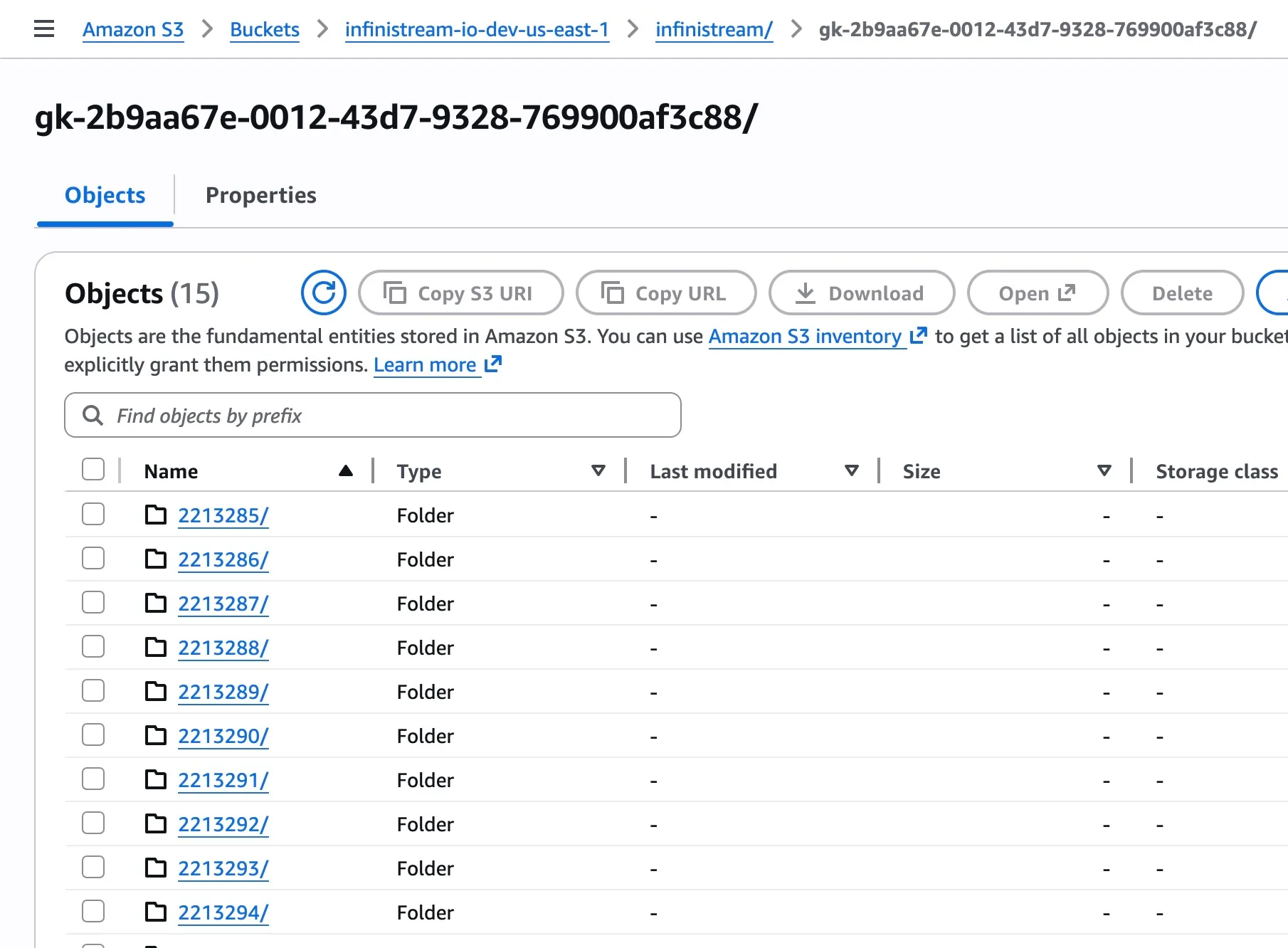

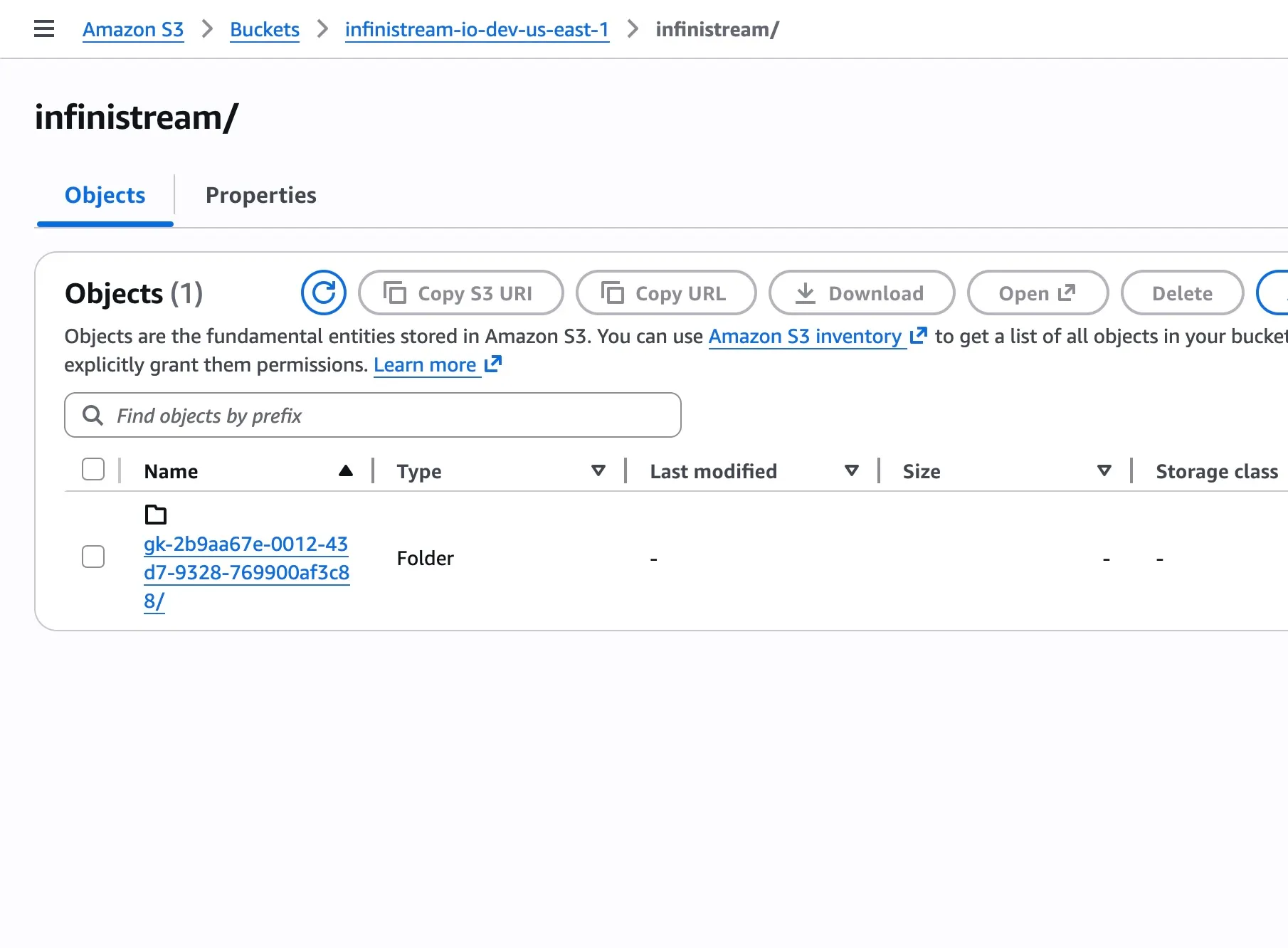

Note that the Infinitream Agents will automatically write all of their data to a top-level infinstream prefix in the bucket. In addition, each group will write its data to a group-specific prefix (group ID) within the infinistream prefix so multiple InfiniStream groups can share the same object storage bucket without issue.

AWS S3

INFINISTREAM_BUCKET_NAME=infinistream-io-dev-us-east-1

The InfiniStream Agent embeds the official AWS Golang SDK V2 so authentication/authorization with the specified S3 bucket can be handled in any of the expected ways, like using a shared credentials file, environment variables, or simply running the Agents in an environment with an appropriate IAM role with Write/Read/Delete/List permissions on the S3 bucket.

We suggest you give the agent the appropriate IAM role and skip the other two authentication methods. This role can be provided at the EC2 instance level itself if running in AWS Environment. However, if your agent sits elsewhere while still storing data in an S3 bucket, then the shared credentials file or environement variables are the better choices.

S3 compatible Object stores

If you’re using S3 compatible object stores, like MinIO, which is the one supported right now, the configuration is similar to configuring an S3 bucket.

MinIO

Configuring the MinIO end point requires the root bucket name like AWS S3 and additionally the address of the end point.

INFINISTREAM_BUCKET_NAME=infinistream-io-dev-us-east-1 INFINISTREAM_MINIO_EP=aix:9000

Caution

InfiniStream manages the bucket Lifecycle. Anything that alters that property can lead to undocumented results. This means the following settings should be turned off:

• Object Retention Policy
• Object Versioning
• Soft Deletion

However, you can setup a rule to clean objects ending with .temp which are temporary files created before they are moved to real name. Make sure your rule does not run on .temp files that are still work in progress…

Object Storage Permissions

In addition to configuring the InfiniStream buckets, you’ll also need to make sure the Agent has the appropriate permissions to interact with the bucket.

AWS S3

An IAM role can be created with the following permissions and assigned to EC2 instance running the agent.

Specifically, the Agents need permission to perform the following operations:

• PutObject

  To create new files.

• GetObject

  To read existing files.

• DeleteObject

  So the Agents can enforce retention and compact files.

• ListBucket

  So the Agents can enforce retention and compact files.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "s3:*",
                "s3-object-lambda:*"
            ],
            "Resource": "*"
        }
    ]
}

AWS S3 Express

Specifically, the Agents need permission to perform the following operations:

• PutObject

  To create new files.

• GetObject

  To read existing files.

• DeleteObject

  So the Agents can enforce retention and compact files.

• ListBucket

  So the Agents can enforce retention and compact files.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "S3ExpressFullAccess",
            "Effect": "Allow",
            "Action": "s3express:*",
            "Resource": "*"
        }
    ]
}
